[ 01 ] PRODUCT

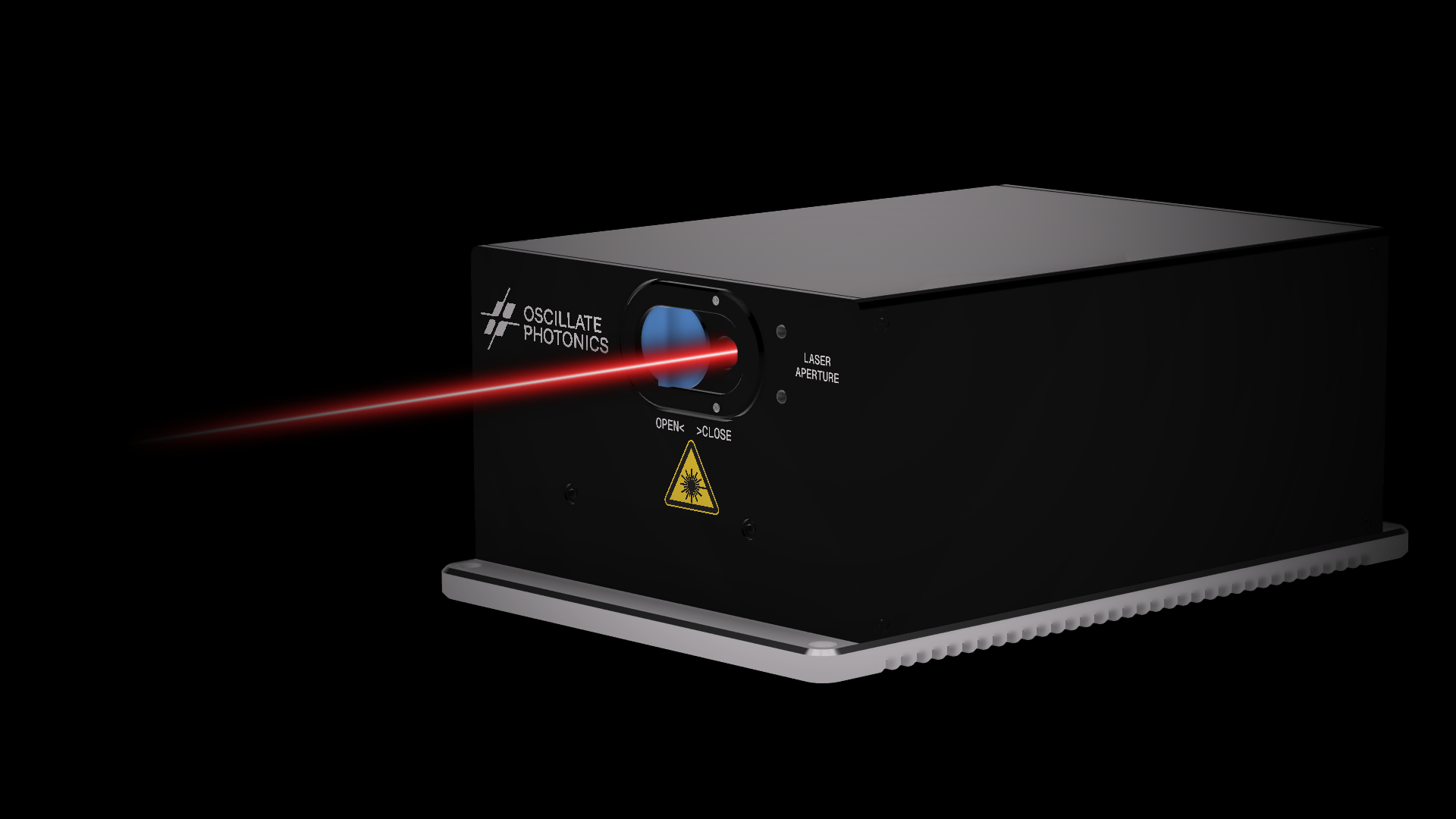

KYMA

Ultrafast, anywhere.

KYMA
Get in Touch
///

Ultrafast Pulses

Sub-55 fs pulse duration for precision applications requiring the shortest pulses.

///

High Peak Power

Industry-leading >1.5 MW peak power in a fraction of the footprint.

///

Turnkey Operation

No alignment, no consumables, no maintenance required. Just power on and go.

///

Tunable Dispersion

Deliver megawatt power on target.

PM Fiber

All-PM Fiber

Environmental Stability

No Consumables

No Consumables

Long working lifetime

Pulse

< 55 fs

Best-in-class pulse duration

Affordable

Affordable

Fraction of legacy system cost

Compact

Compact

Monolithic; no umbilical

OEM Ready

OEM Ready

Designed for integration

[ 02 ] SPECIFICATIONS*

Optical

Wavelength 1030 – 1130 nm
Pulse Duration < 55 fs
Repetition Rate† 37.5 MHz
Average Power > 3 W
Pulse Energy > 75 nJ
Peak Power > 1.5 MW
Beam Quality (M²) < 1.3
Polarization Linear, Vertical
Dispersion Compensation‡ 20,000 fs2

Physical

Dimensions 190 × 138 × 87 mm
Cooling Air Cooled
Power Supply USB-C PD (100W)
Dispersion Control Software, API, USB 2.0
Output Free-space
Electrical Pulse Train Out TTL BNC

Stability

Power RMS Deviation (8 hrs) < 0.2%
Starting Power Consistency (>250 trials) < ±1%

*Typical specifications, subject to change.
†Other repetition rates available upon request.
‡Other dispersion compensation available upon request.

Pulse (typical)

Pulse profile

Spectrum (typical)

Spectrum
[ 03 ] APPLICATIONS

Nonlinear Microscopy

  • Multiphoton Fluorescence Imaging
  • Second Harmonic Generation (SHG)
  • Third Harmonic Generation (THG)
  • Deep Tissue Imaging

Research & Industrial

  • THz Generation
  • Two-Photon Polymerization
  • Ultrafast Spectroscopy
  • Materials Processing
[ 04 ] HARDWARE

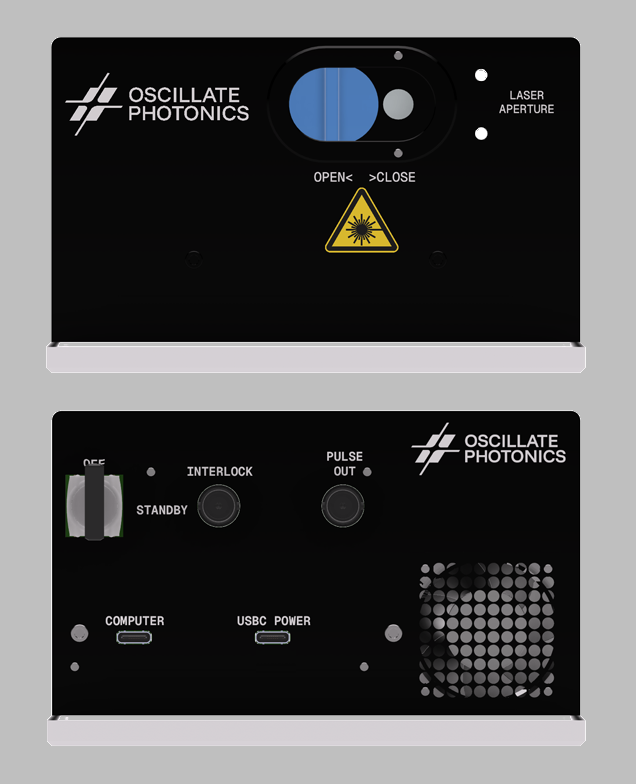

KYMA Front and Back
Product Label Hazard Warning
